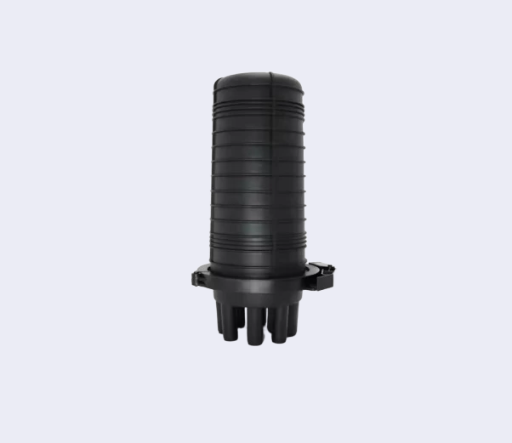

Fiber Dome closure 24 Core with Splitter 1x8

Dome closure with Splitter 1xN

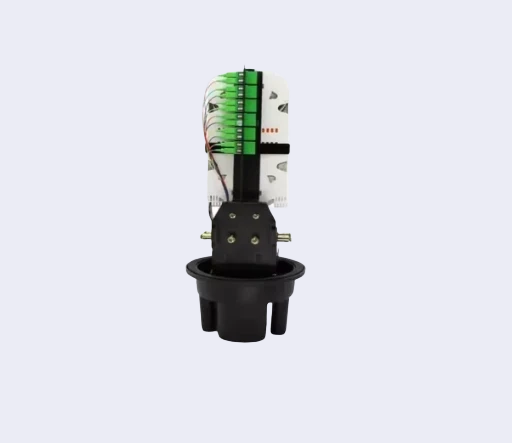

Fiber optic splice dome closures and the splice trays inside provide strong protection for the spliced fiber joint and fiber cables. A large variety of fiber optic closures ensure durability whether the splice closure is in air, in the pipeline, or buried underground. The splitter inside used to distribute the fiber in FTTH solutions.

Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried, and duct mounting, which used for direct connection during the optical fiber transmission process. With good sealing performance, the simple installation and wide application range are the best choices for optical fiber connection.

  • Dimension: 435×190mm

  • Cable ports: 5 ports (1Inlets + 4Outlets)

  • Cable Diameter: Φ8—Φ30(mm)

  • Splice Trays: 4×12 Cores trays

  • Splicing Capacity: 12-48 Cores

  • Splitter Capacity: 1xN or 2xN

  • IP rating: IP65

  • Installation Type: Aerial, Underground or Pole/Wall Mounting

  • Operating Temperature: -40 to +60˚C

  • Storage Temperature: -40 to +70˚C
