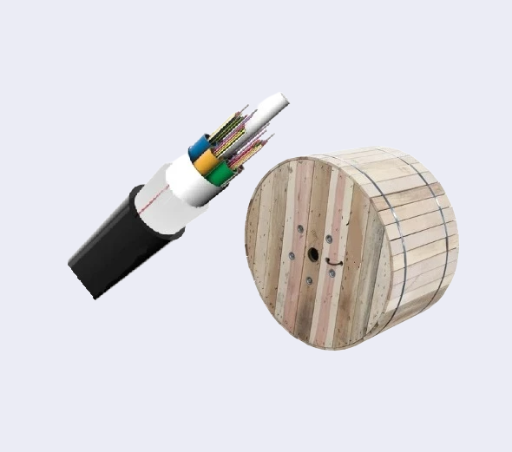

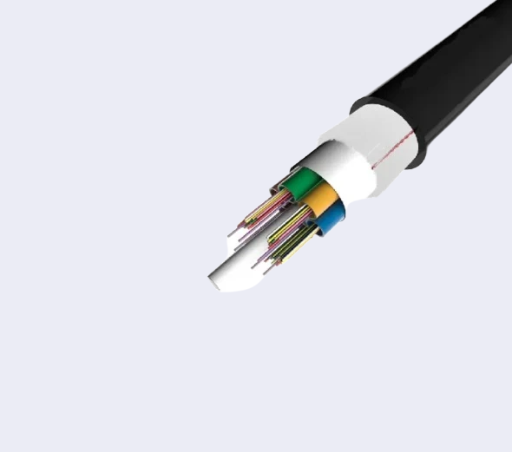

Fiber Optic Indoor Non-Armored Multimode MLT Cable
Multimode 50/125 Multi Loose Tube

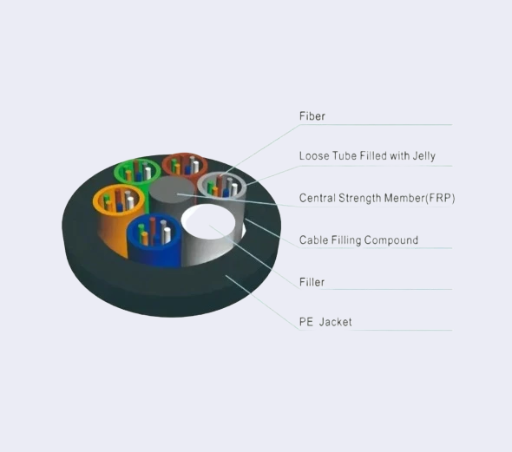

Indoor-Outdoor Multi Loose Tube Cable is mostly Installed in riser ducts, cable trunks and under data center floors. It can also be made into a multimode OM2 or Om3 50/125 from 12 to 144 cores structure with a cross-section non-metallic strength member and black LSZH, UV resistant jacket with ripcord type shaped. Due to its small diameter and flexibility, the universal fiber optic cable is ideal for installation in cable trays, especially used in indoor and outdoor access cabling, the design makes the fiber cable are suitable for the following application such Distribution system cable.
Fiber type: Multimode OM2 or OM3 50/125
Fiber Cores: 12 to 144 cores
Loose Tube: Multi Loose Tube Non armored Cable
Cable Diameter: 9.7 - 13.5 mm
Tensile Strength Term (N): 600/1500
Crush Resistance: 300/1000
Tension: IEC 60794-1-21 Method E1
Bend: IEC 60794-1-21 Method E11
Crush: IEC 60794-1-21 Method E3
Cover Material: PE or LSZH
Operating Temperature: -30°C to +60°C
