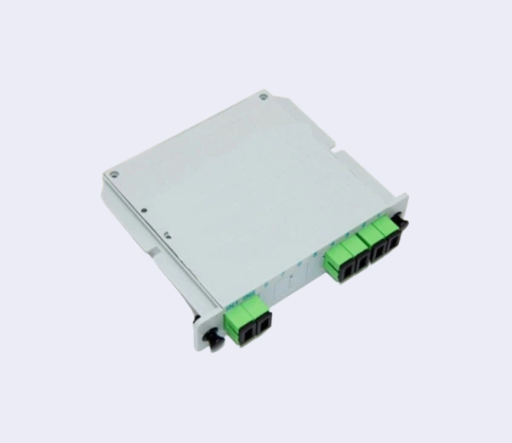

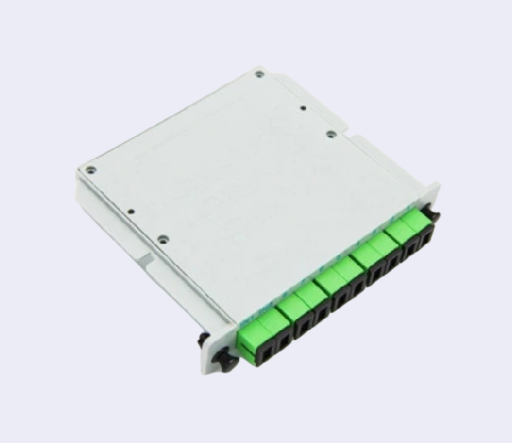

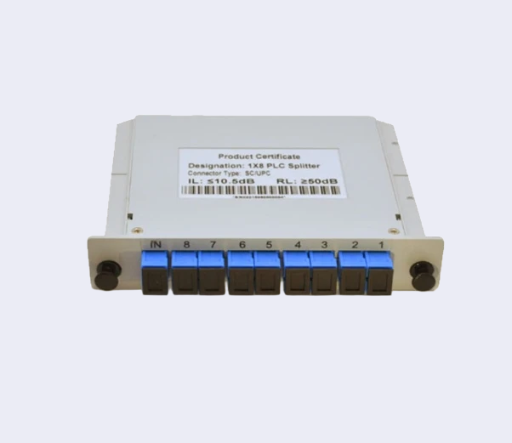

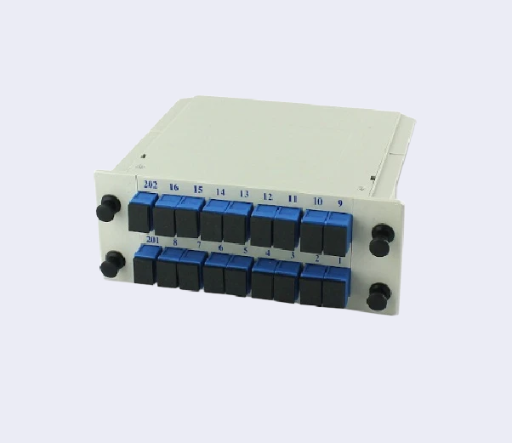

Fiber Optic LGX Module PLC Splitter 2xN
Singlemode 9/125
Fiber Optic PLC Splitters are essential telecommunications components widely used in FTTX and Passive Optical Network (PON) systems. These devices are designed to split an optical beam into multiple beams with specific splitting ratios, making them a cost-effective solution for FTTH networks.
We offer a various of LGX Module Cassette type splitter modules and products. The PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications.
Model: LGX Module Cassette
Size: 130x100x25mm
Fiber Type: SM G657.A1
Wavelength: 1260nm-1650nm
Splitter Type: 1×N and 2xN
Input Connector: SC, LC or FC
Output Connector: SC, LC or FC
Connector Polish Types: UPC or APC
Insertion Loss (dB) Max: From <4.0 to <20.8 depending splitting ratio
Uniformity (dB) Max: From <0.4 to <1.5 depending splitting ratio
PDL (dB) Max: From <0.4 to <0.5 depending splitting ratio
Directivity (dB): (50) 55
Return Loss (dB): Min: 50 (55)
Operating Temperature: -40 ~ +85°C
Power Handling: 300mW
