OTDR testing distance calculation

An Optical Time-Domain Reflectometer (OTDR) is a crucial testing instrument used in the realm of fiber optic communications.

10/9/2024

What is an OTDR?

An Optical Time-Domain Reflectometer (OTDR) is a crucial testing instrument used in the realm of fiber optic communications. It serves as both a diagnostic tool and a monitoring device, helping to ensure the integrity and performance of fiber optic networks. Essentially, OTDRs operate by sending a series of light pulses into a fiber optic cable and then analyzing the light that is reflected back. This method relies on the principles of light reflection and scattering, a phenomenon that occurs naturally within the fiber optic medium.

The working principle of an OTDR involves emitting a pulse of coherent light through the fiber. As this light travels, it encounters various events, such as splice points, bends, and faults, which cause a portion of the light to be reflected back to the OTDR. By measuring the time it takes for this reflected light to return, the device can determine the distance to those events within the fiber. This time-of-flight measurement allows technicians and engineers to map the entire length of the fiber and quickly identify any issues that may affect network performance.

OTDRs are equipped with key specifications that significantly influence their effectiveness. For instance, the dynamic range refers to the maximum distance over which a reliable measurement can be obtained. A higher dynamic range allows for assessment over longer distances with greater sensitivity. Additionally, the event dead zone is a critical specification that indicates how close to a reflective event another event can be detected. A smaller event dead zone enhances the OTDR’s ability to identify closely spaced faults or connections. Furthermore, attenuation measurement enables the detection of signal loss throughout the fiber, which is vital for maintaining optimal network performance.

Importance of Distance Measurement in Fiber Optics

Accurate distance measurement in fiber optic installations and maintenance is essential for several reasons. First and foremost, the performance efficiency of optical networks is heavily influenced by the distance between components. This is due to the inherent signal attenuation that occurs over longer distances, where the intensity of the light signal diminishes, potentially leading to loss in signal strength. Consequently, network operators must be vigilant in monitoring and maintaining signal integrity, as even minor discrepancies in distance can significantly affect system performance.

In scenarios involving fault detection, precise distance measurement plays a crucial role. Techniques such as Optical Time Domain Reflectometry (OTDR) rely on exact distance data to identify and locate faults within the fiber optic cable. By determining the length of the fiber and the precise location of any interruptions, technicians can undertake more efficient repairs, minimizing downtime and maintenance costs. Thus, the ability to accurately measure distance is paramount in maintaining the reliability of fiber optic networks and reducing potential disruptions.

Furthermore, accurate distance measurements are vital for optimizing network design. During the installation phase, understanding the exact distance between network nodes allows for judicious planning regarding the type of cables used and the deployment of amplification equipment. This ensures that the entire network operates within industry specifications and compliance standards, which is necessary for both safety and operational efficiency.

On the other hand, inaccurate distance readings can lead to numerous adverse consequences, including overestimating or underestimating required fiber length, inadequate signal strength, and non-compliance with regulatory demands. Therefore, employing reliable measurement techniques is imperative to mitigate these risks and promote sustainable fiber optic network performance.

Calculating Distance Using OTDR

Optical Time Domain Reflectometers (OTDR) are vital tools for assessing the integrity and performance of fiber optic cables. Understanding how to calculate distances to connectors, splices, and faults within the fiber is essential for effective troubleshooting and maintenance. The process begins with connecting the OTDR to the fiber optic cable, initiating a test that sends pulses of light through the fiber. As these light pulses encounter variations in the medium, such as connectors or breaks, reflections are generated, which the OTDR measures.

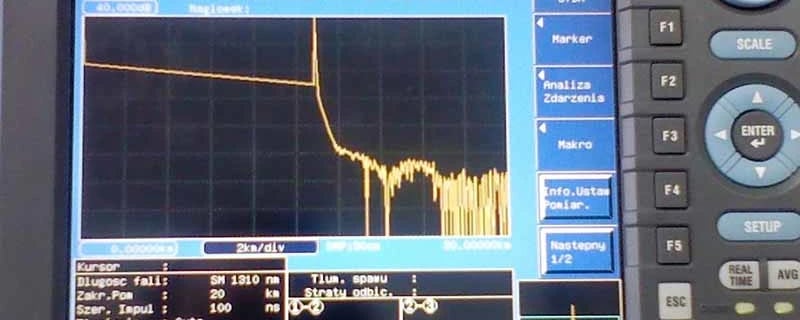

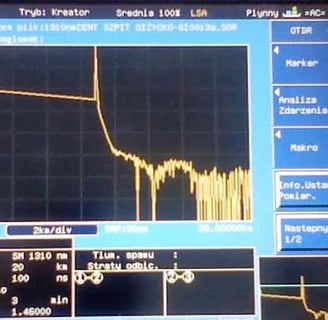

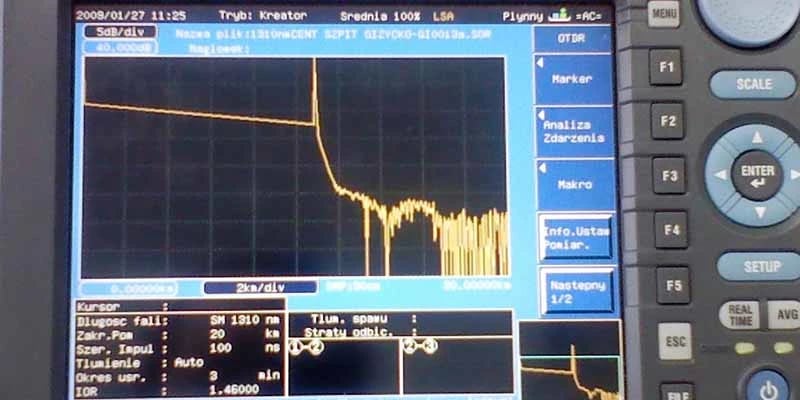

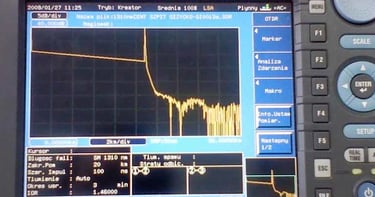

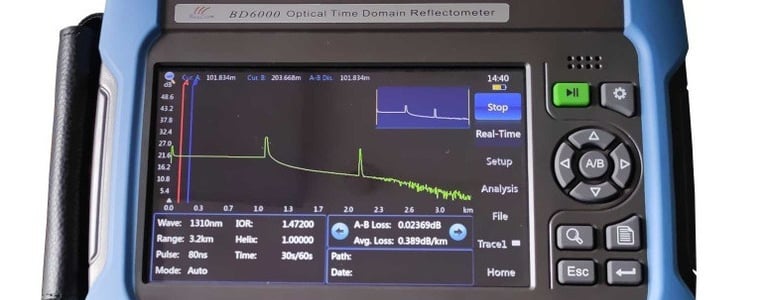

To accurately gauge the distance to specific points on your fiber network, it is crucial to analyze the OTDR trace produced after running a test. The trace typically displays a graph of reflected power versus time. The time taken for light to return to the OTDR is directly proportional to the distance of the reflecting point. By applying the speed of light in the specific fiber type, generally around 2/3 of the speed of light in a vacuum, one can convert the time delays into distances. This transformation allows for identifying key markers such as connectors and splices accurately.

When interpreting the OTDR trace, attention should be given to the event markers, which represent interfaces where reflections occur. Proper identification of these areas allows for better pinpointing of any faults or weaknesses in the fiber. To enhance measurement accuracy, ensure that the OTDR is calibrated for the specific fiber type and test conditions, and consider conducting multiple tests to verify results.

Challenges may arise due to factors like return loss, attenuation, or ambient conditions affecting the measurement. To troubleshoot distance calculation issues effectively, review test setups, connections, and device settings. Adjusting these factors can lead to more precise measurements and facilitate thorough assessments of fiber optic networks.

Best Practices for Using OTDR in Fiber Optic Testing

Utilizing an Optical Time Domain Reflectometer (OTDR) effectively is essential for ensuring the integrity and reliability of fiber optic networks. To achieve optimal results, technicians should adhere to a series of best practices during setup, testing, and analysis. First and foremost, proper equipment setup is critical. Ensure that all connectors are clean and free from debris, as contamination can lead to inaccurate readings. Additionally, it is important to select the appropriate test wavelength based on the type of fiber optic system being evaluated. Commonly used wavelengths are 1310 nm and 1550 nm, but understanding the specific requirements of the network is essential for accurate distance measurement and fault location.

Environmental conditions can greatly influence OTDR results. Testing should ideally occur during favorable weather conditions, avoiding extreme temperatures, humidity, or wind. When possible, testing should take place indoors or in a controlled environment to minimize variables that can impact data integrity. Likewise, ensuring that fibers are not subjected to excessive bends or stresses during testing will result in more reliable outcomes.

Moreover, establishing proper testing protocols is vital. Employing a consistent methodology when performing tests facilitates comparison of results over time. Taking multiple measurements and averaging results can help mitigate anomalies caused by environmental factors or equipment inconsistencies. Safety should be a priority; technicians must wear appropriate personal protective equipment to safeguard against potential dangers associated with fiber optics.

Regular maintenance of the OTDR itself is also essential. Scheduled calibration ensures accuracy, while routine checks for software and hardware updates can improve performance and functionality. After testing, thorough documentation of findings, including any anomalies encountered, is crucial for future reference and analysis. This data can inform troubleshooting efforts and subsequent maintenance strategies, ultimately enhancing the efficiency and reliability of fiber optic networks.
